Applications

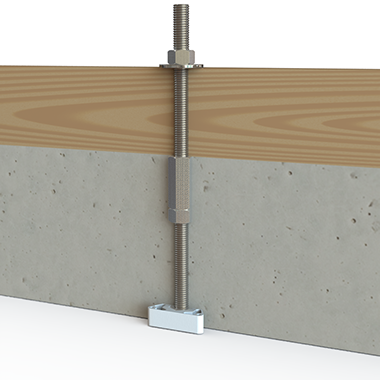

Wood Sill Plate Anchor
The base is designed to be nailed to the forms prior to rebar installation. Threaded rod is added prior to the pour. The coupler on the top surface provides a connection point for the sill plate after the concrete is cured. Plate connection is made using a short piece of rod, square washer and nut. Available in HDG for pressure treated lumber.
Light Gauge Steel
Applications
Perimeter curtain walls with non-load bearing in-fill steel stud construction must be anchored to the concrete slab above and below. Many engineers require a drilled or cast in anchor spaced at regular intervals to achieve this. As drilling a P.T. slab in inadvisable or prohibited, a cast in solution is preferable.
The P.T. Anchor can be configured to provide a bolted connection at the top, bottom or both surfaces of the slab.
Bottom Track Anchorage
The PT Anchor is set in the concrete form prior to the pour. This configuration shows an embedded coupler connection for the bottom wall plate attachment. There is a double nut and washer in the center of the rod to provide extra pull-out strength.
Top Track Anchorage
This configuration includes only the lower coupler. It is for connections of top track to slab only. Embedment depth can be varied to comply with engineering requirements.
Top & Bottom Track Anchorage
This configuration includes an embedded coupler at the top and bottom surface of the slab. The lower plate has a hole, so the bolt can be fastened right through into the lower coupler. Again the double nut and washer provide the extra pull-out strength.
